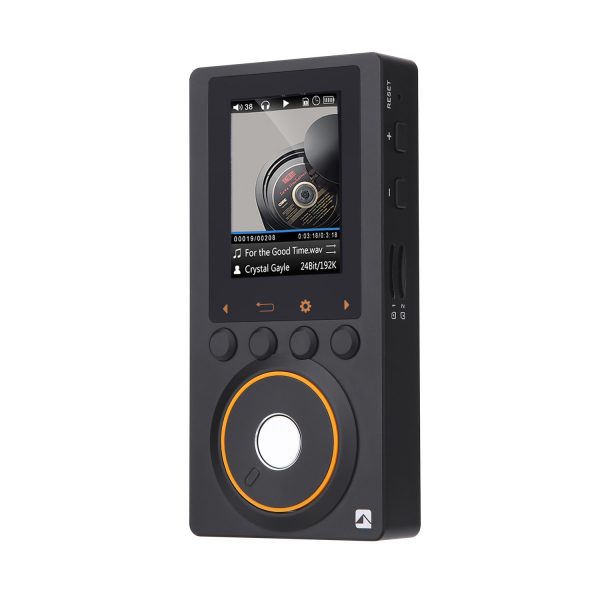

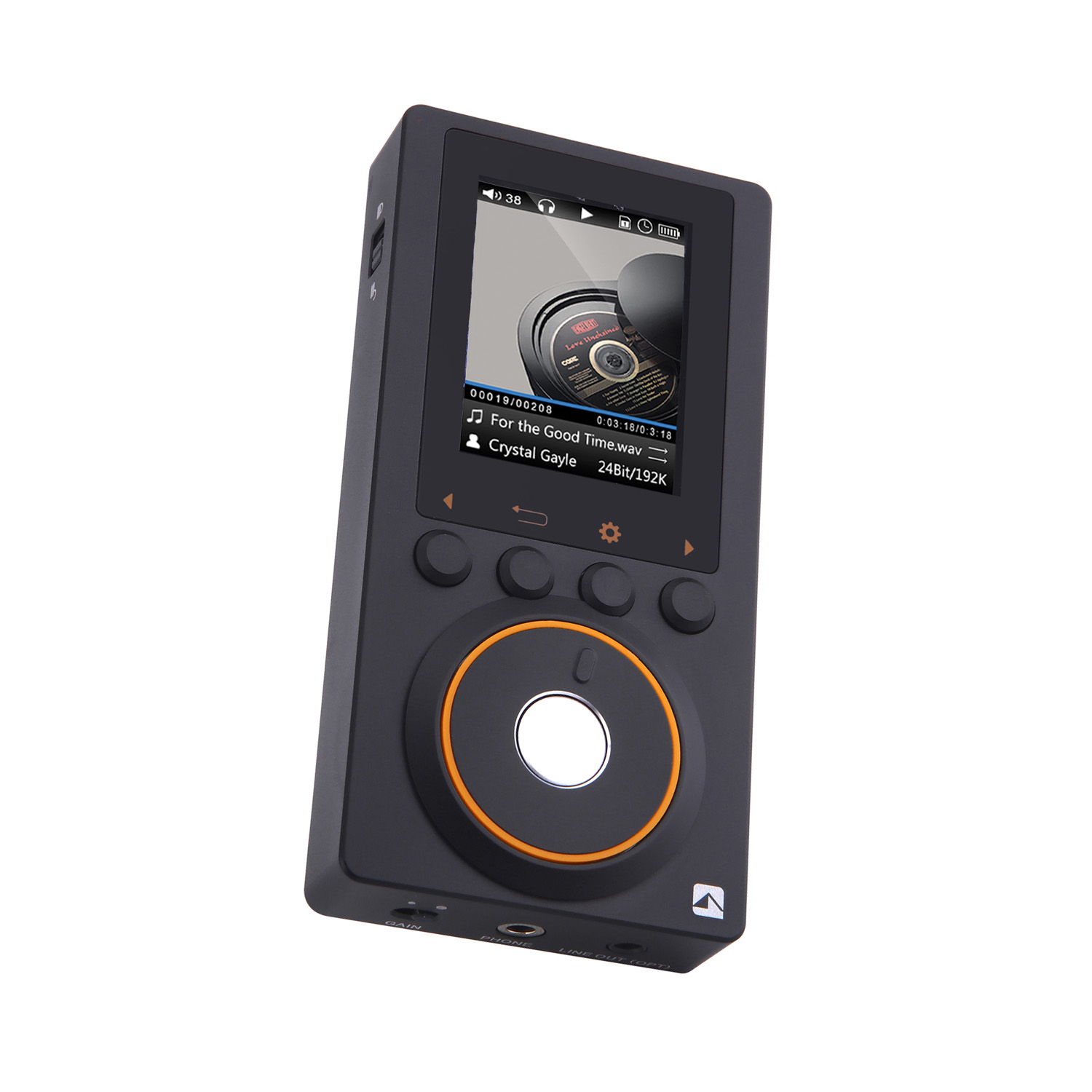

HDA-DP10 Hi Res DSD Music Player


  • Lock key disables your player’s controls to prevent accidental key presses when it is in your pocket or bag.
  • Stylish Panel design with a sharp orange color wheel

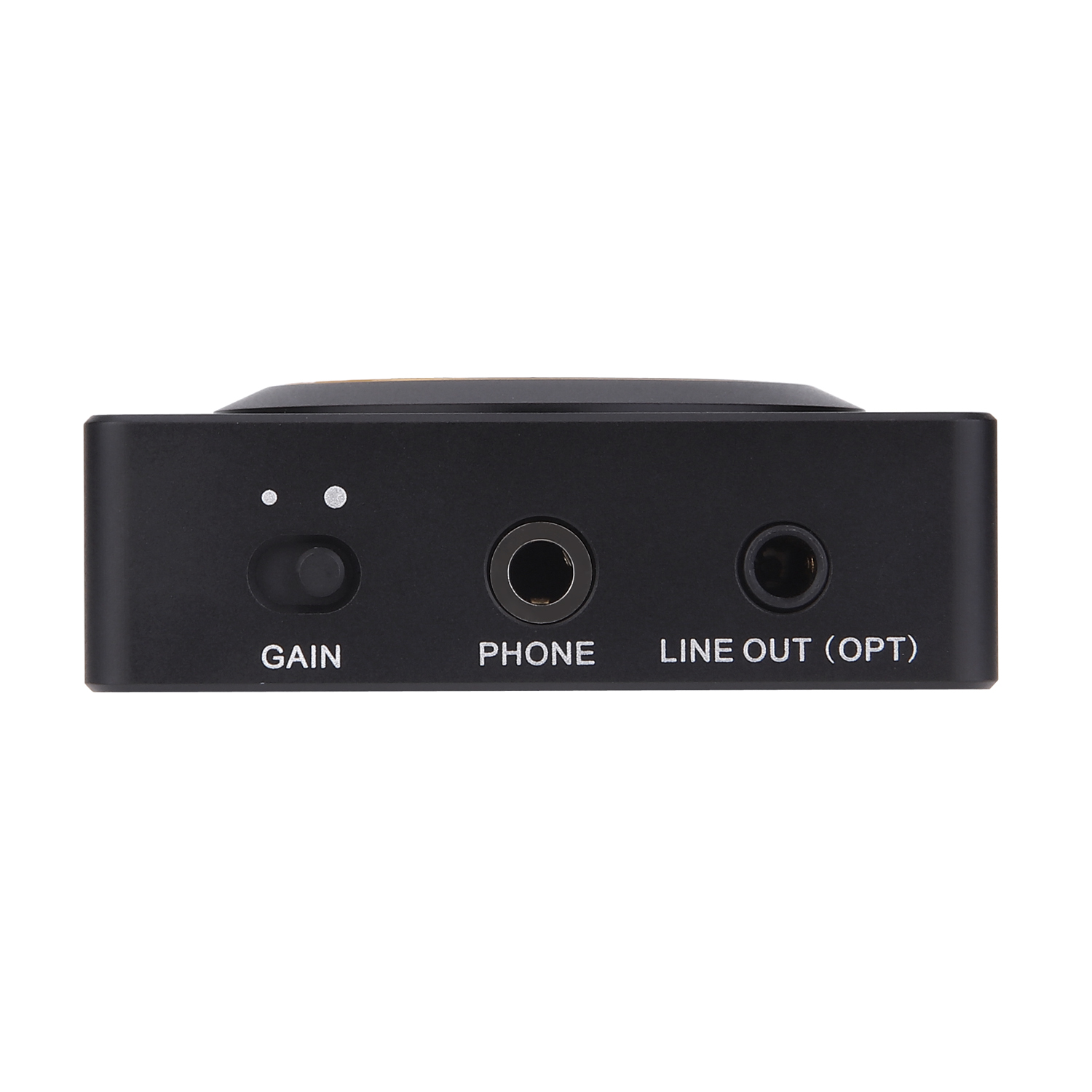

  • Optical line out for external device
  • A high end audio headphone amplifier chip muse8920 with AKM4490 DAC

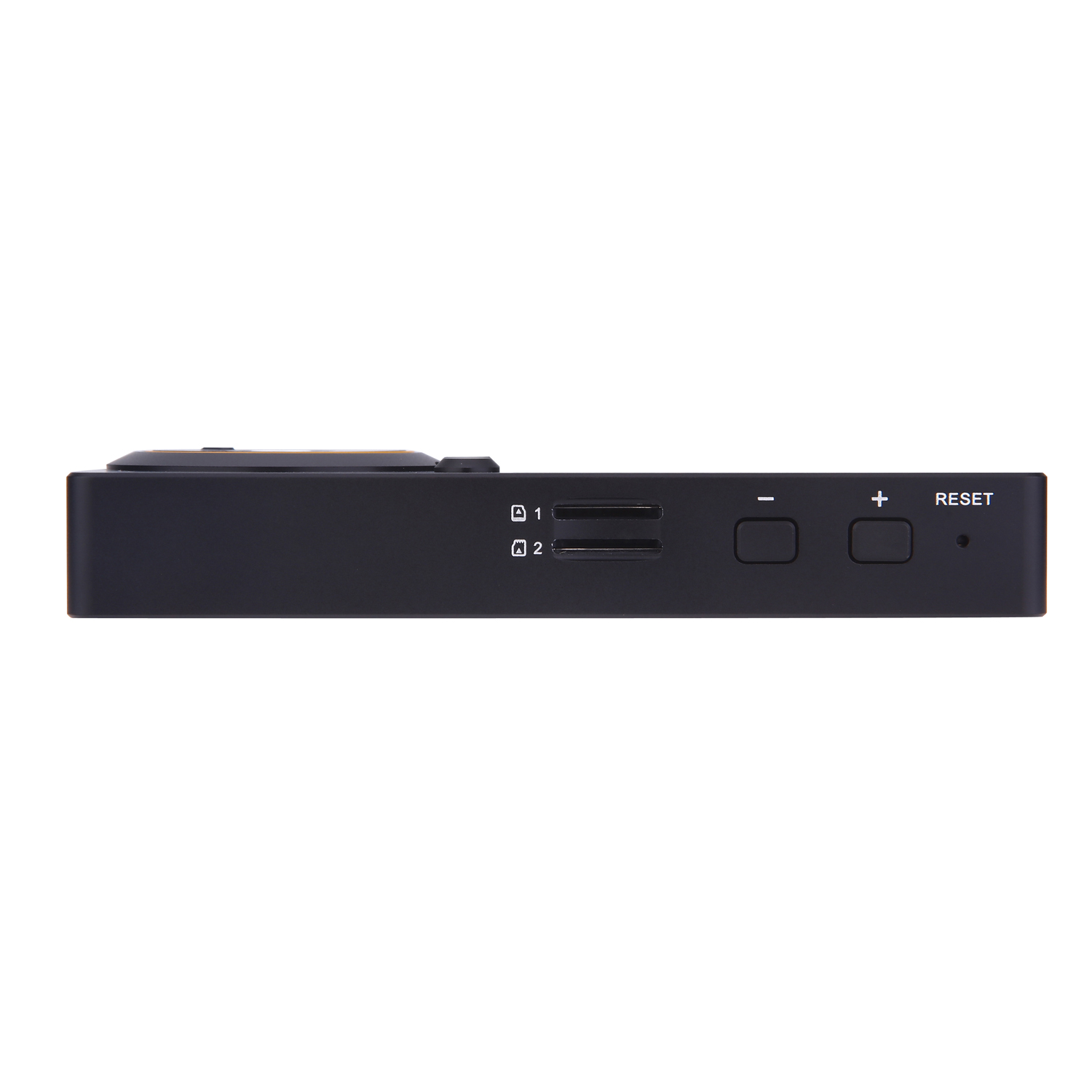

  • Support 2x SD card

Out of stock



Model Number HDA-DP10
Display 2-inch (240 × 320) 262K color screen
Music Playback Application ATC high precision portable digital music player
CPU Processor JZ4760B mobile application processor
Headphone amplifier MUSES 8920 + LMH6643
Volume Control 100 steps – digital volume control Max volume control can be customized
Memory Expansion Micro SDXC slot (up to 128GB x 2)
Output S / N 112dB
Headphone Output Power 240mW@32 ohm/THD+N<0.0025%
Maximum Headphone Output 500mW (32 ohm loading)
Line out Output Voltage 1.7Vrms
Frequency Response 20Hz~20KHz (±0.5dB)

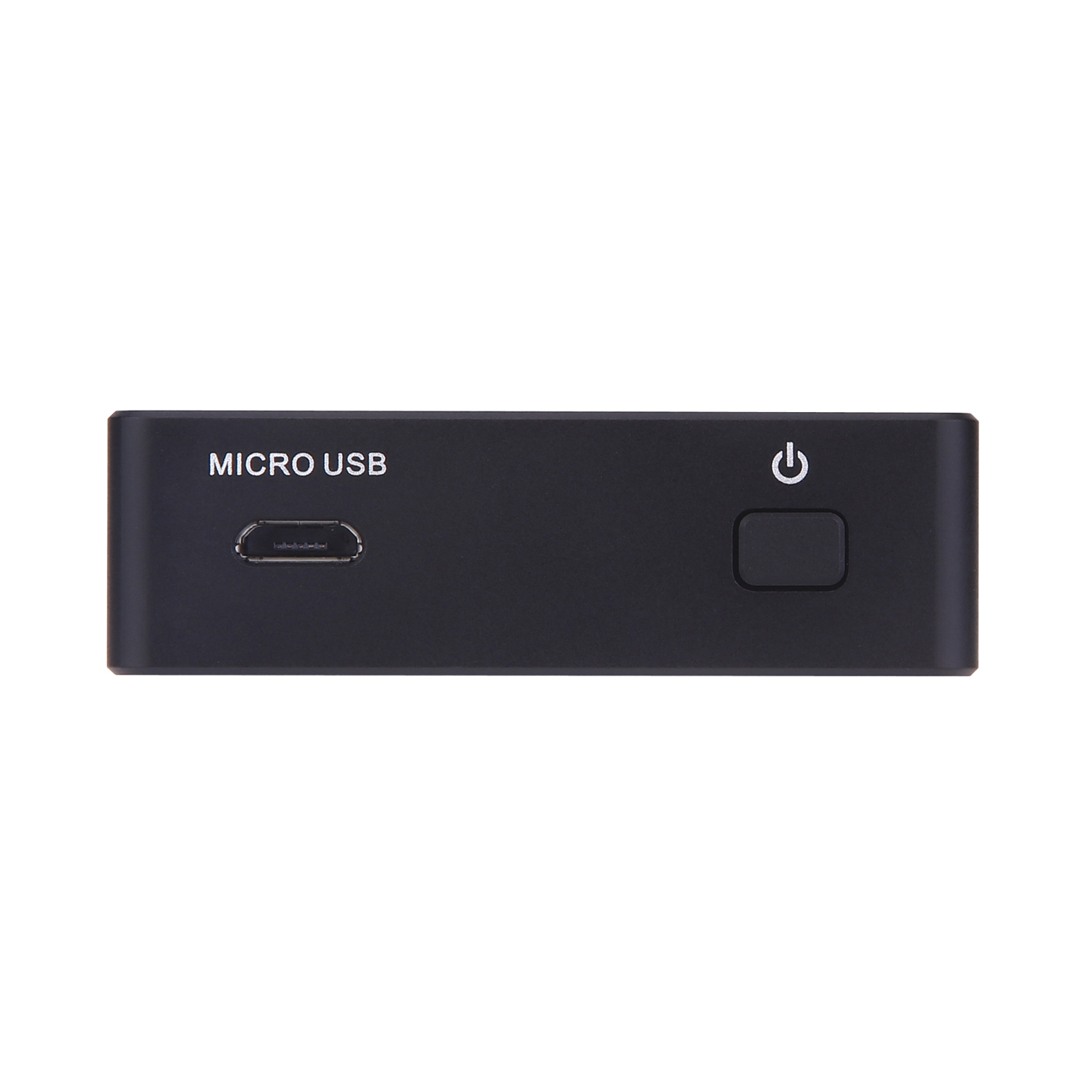

Micro USB 2.0 (Recharge / Data Transfer ) Support Win 7, Win 8, Win 10, Mac OS
Built-in Battery 2400mAh
Battery Charging Time About 4 hours (using DC5V 2A)
Battery Life 9 hours Dependent on the environment and use
THD+N 0.0016%
Crosstalk 70dB
Sound Effects DAC filter setting, gain control
Supported Audio Formats DSD64, WAV, ALAC, AIFF, FLAC, APE
Other Functions Support CTIA headphone, automatic/sleep shutdown, play mode selection-order, repeat one, repeat all, shuffle
Dimensions Width: 53mm x Height: 107.50mm x Depth: 16.50mm
Weight 141g
Accessories USB cable x 1, optical cable x 1, 3.5mm recording cable x 1, user manual x 1
